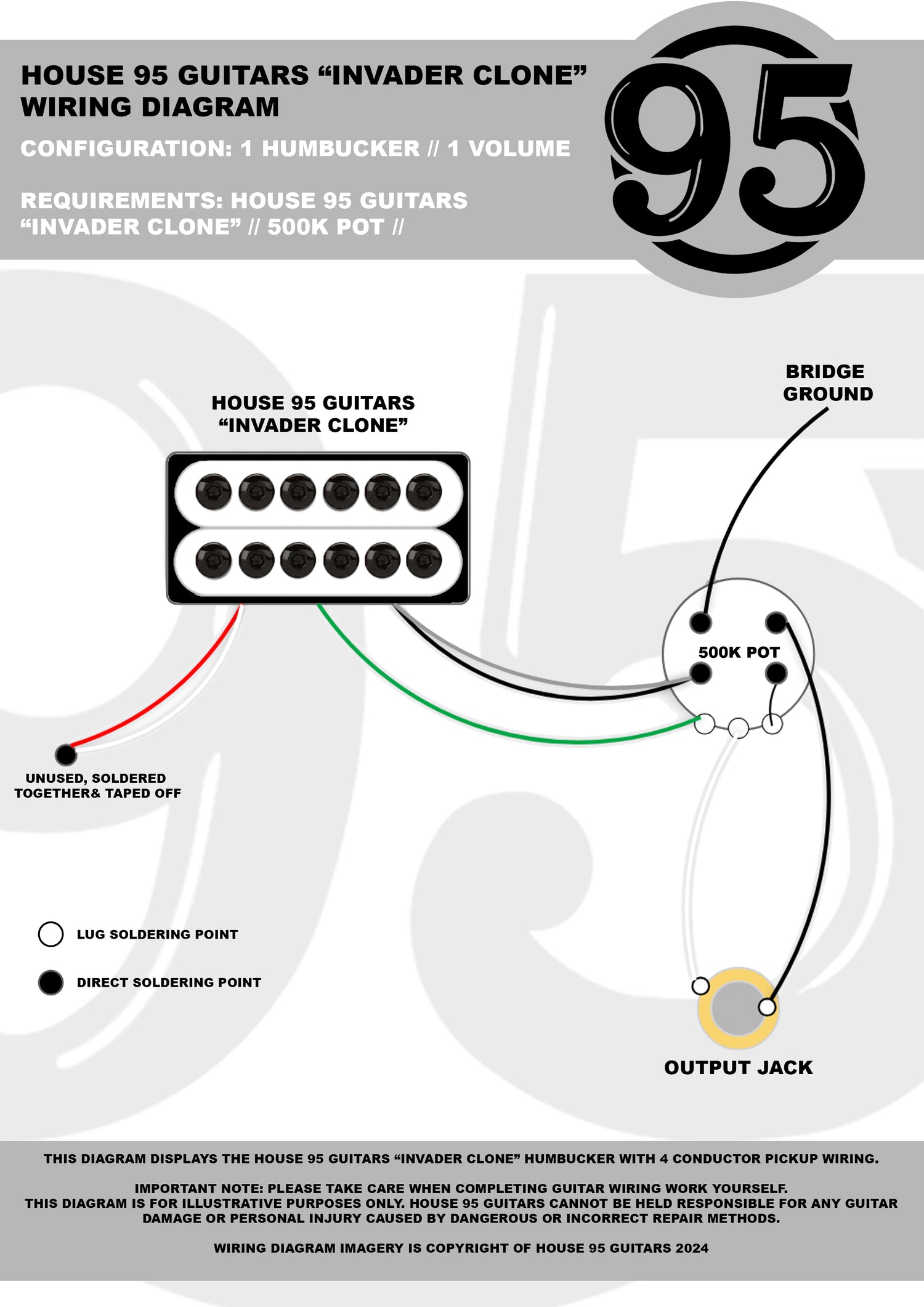

1 Humbucker 1 Volume Wiring Diagram

The classic 1 humbucker 1 volume wiring schematic, with no treble bleed. This configuration is what our favourite Punk rock icons have lived by for YEARS.

*It is key to note that different humbuckers have different colour wires dependent on brand and model. If you need any assistance please feel free to reach out to me.

Instructional video on install will be available here very soon!
